Safe & Reliable

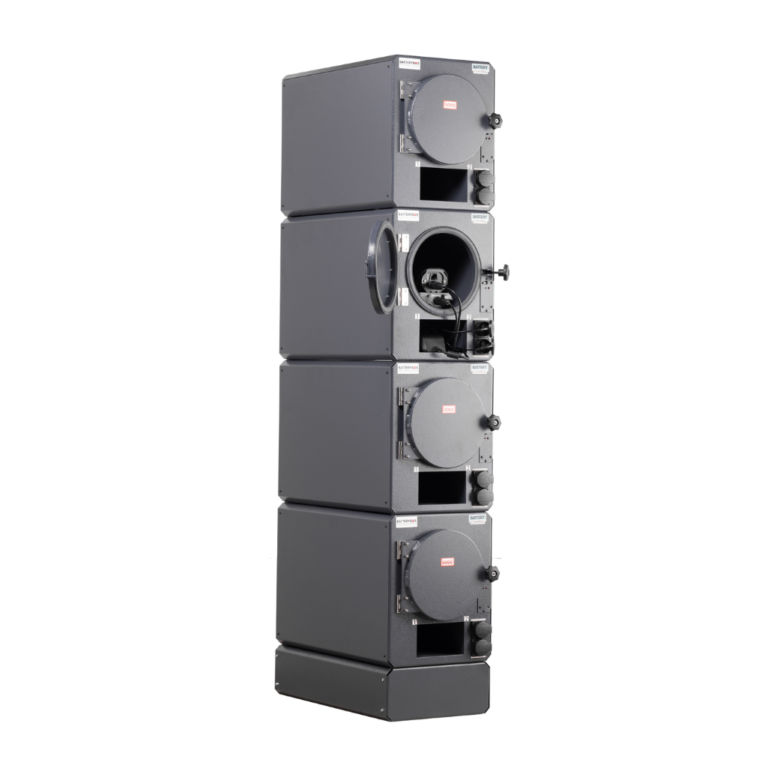

Developed with European expertise and certified by leading European safety institutes, Kinetic’s EZ-Charge™ Fire Safe is North America’s first fire-proof lithium-ion battery charging cylinder.


Each cylinder is built for maximum safety during storage and charging, minimizing risk and limiting damage in the event of a fire.

EZ-Charge™ Fire Safe also includes safety features for easy operation. If the door isn’t properly closed, visual and audible alerts notify users immediately, ensuring safe operation.

Experience the Kinetic difference.

Benefits

• Fire-proof for an unlimited number of minutes
• Contains the explosive pressure caused by a lithium-ion battery fire
• Controls the fire and the high temperatures that can reach 1,200°C
• Meets the strictest safety requirements of insurers VDMA
• Tested extensively with critically defective batteries

Certifications

Certified and tested by renowned European test institutes:

• KIWA
• MPA Dresden
• VDMA

Standard

Each cylinder has a 2,000Wh capacity and holds up to two standard e-bike batteries.

• Max capacity: 2,000Wh
• External dimensions (LxWxH):
  24.8″x13.78″x17.01″ [630x350x432 mm]
• Internal dimensions (LxWxH):
  21.65″x10″x10″ [550x254x254 mm]
• Weight: 48.5 lbs. [22 kg]
• Steel housing: 14 Gauge, 0.08″ [2 mm]
• Door: 11 Gauge, 0.12″ [3 mm] reinforced steel with double steel ring
• Door diameter: 10″ [254 mm]
• Tub rubber: Non-flammable, suitable for cable passage
• Exterior finish: Powder-coated RAL7016
• Alarm: Audio and visual door detection/control system
• Sockets: 2x 120V per door

XL

Each cylinder has a 3,700Wh capacity and holds up to four standard e-bike batteries.

• Max capacity: 3,700Wh
• External dimensions (LxWxH):
  24.8″x17.72″x22.48″ [630x450x571 mm]
• Internal dimensions (LxWxH):
  21.65″x12.36″x12.36″ [550x314x314 mm]
• Weight: 105.8 lbs. [48 kg]
• Steel housing: 14 Gauge, 0.08″ [2 mm]
• Door: 11 Gauge, 0.12″ [3 mm] reinforced steel with double steel ring
• Door diameter: 12.36″ [314 mm]
• Tub rubber: Non-flammable, suitable for cable passage
• Exterior finish: Powder-coated RAL7016
• Alarm: Audio and visual door detection/control system
• Sockets: 4x 120V per door

Mobile

Each cylinder has a 2,000Wh capacity and holds up to two standard e-bike batteries.

• Max capacity: 2,000Wh
• External dimensions (LxWxH):
  24.8″x13.62″x13.62″ [630x346x346 mm]
• Internal dimensions (LxWxH):
  21.65″x10″x10″ [550x254x254 mm]
• Weight: 48.5 lbs. [22 kg]
• Steel housing: 14 Gauge, 0.08″ [2 mm]
• Door: 11 Gauge, 0.12″ [3 mm] reinforced steel with double steel ring
• Door diameter: 10″ [254 mm]
• Tub rubber: Non-flammable, suitable for cable passage
• Exterior finish: Powder-coated RAL7016
• Alarm: Audio and visual door detection/control system
• Sockets: 1x 120V per door

Charging lockers for e-bikes must follow smoke management guidelines to ensure safe use. According to VDMA regulations, charging lockers need a smoke exhaust system with an outlet leading outside the building.

Proper smoke management requires using the right materials and ensuring correct installation to safely direct smoke away.

If installing an outlet to the outside isn’t possible, lockers should include a smoke detector, which can connect to an alarm system, and a smoke eater (available locally). This alternative helps minimize the impact of any battery fire, limiting smoke damage, although it does not fully comply with VDMA standards.

Following these guidelines makes it easier for architects, project managers, general contractors, and city planning engineers to implement safe and compliant bike parking solutions.
